# Error with drawing tool

**URL:** <https://forum.inductiveautomation.com/t/error-with-drawing-tool/111849>\
**Category:** Ignition\
**Tags:** perspective\
**Created:** [October 31, 2025, 3:09am UTC](https://forum.inductiveautomation.com/t/error-with-drawing-tool/111849 "2025-10-31T03:09:34Z")\
**Posts on this page:** 4\
**Page:** 1

<div class="post-metadata">

**Author:** ![alejandroxgodoy](https://avatars.discourse-cdn.com/v4/letter/a/b2d939/32.png) [@alejandroxgodoy](https://forum.inductiveautomation.com/u/alejandroxgodoy)\
**Post date:** [October 31, 2025, 3:09am UTC](https://forum.inductiveautomation.com/t/error-with-drawing-tool/111849/1 "2025-10-31T03:09:34Z")

</div>

Hi,

any can helpme with this.

i have problem with the drawing tool in perspective. the window interface won't load to edit components

 ![Sin título](https://us1.discourse-cdn.com/inductiveautomation/original/3X/0/4/04e45e0a638e3cc48db58993ab0134355ebd7e81.jpeg)

Regards

---

<div class="post-metadata">

**Author:** ![mperkins](https://sea1.discourse-cdn.com/inductiveautomation/user_avatar/forum.inductiveautomation.com/mperkins/32/71722_2.png) [@mperkins](https://forum.inductiveautomation.com/u/mperkins)\
**Post date:** [October 31, 2025, 4:23am UTC](https://forum.inductiveautomation.com/t/error-with-drawing-tool/111849/2 "2025-10-31T04:23:05Z")

</div>

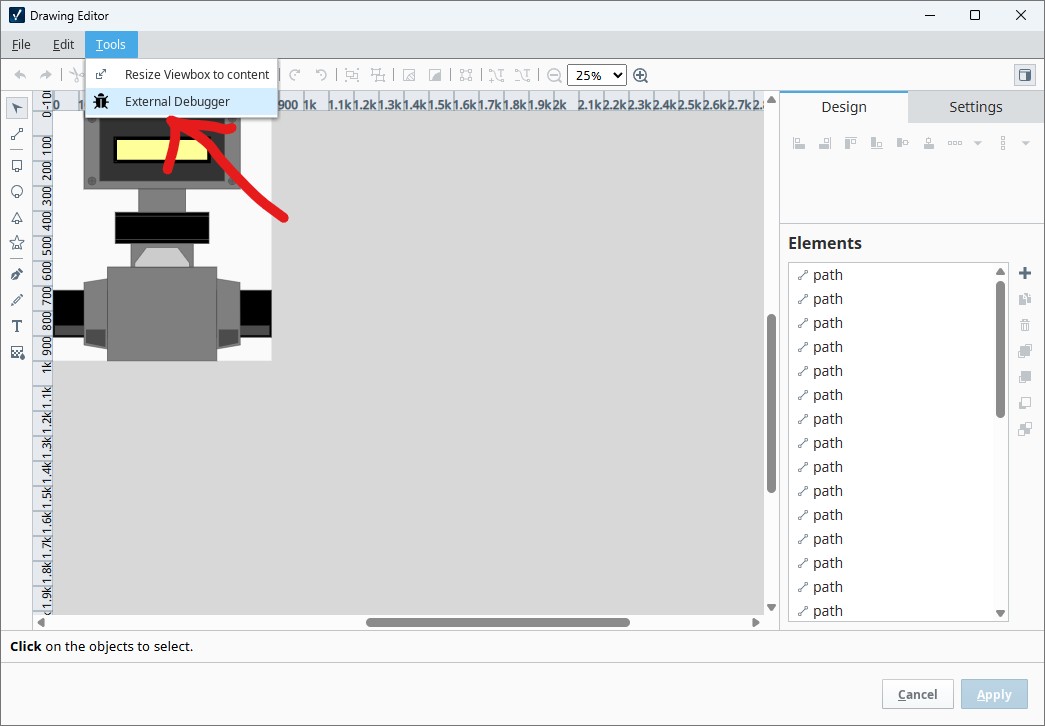

Hi, can you provide a copy of the Drawing Component with the issue? (Within the Designer, select the Drawing Component, copy it, and paste it here)

Another useful diagnostic is to check for console errors within the Drawing Editor by clicking tools → developer tools in the top menu

---

<div class="post-metadata">

**Author:** ![alejandroxgodoy](https://avatars.discourse-cdn.com/v4/letter/a/b2d939/32.png) [@alejandroxgodoy](https://forum.inductiveautomation.com/u/alejandroxgodoy)\
**Post date:** [November 7, 2025, 1:45am UTC](https://forum.inductiveautomation.com/t/error-with-drawing-tool/111849/3 "2025-11-07T01:45:57Z")

</div>

Hi mperkins,

Thanks for helping me, i cant edit nothing drawing. I used to be able to do it, suddenly now I can't. I don't know if it's because I'm now accessing from an external domain via https

Regards
