How do I hide the heat map gradient bar?
How can I implement Custom range for the bar colors

0 - 30 = red
31 - 60 = orange
61-100 = green

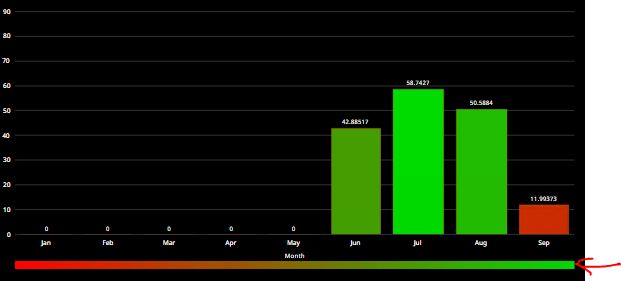

![help 1](https://us1.discourse-cdn.com/inductiveautomation/original/3X/9/1/91459b36fae1902fe2f6bbec9183b8e8aa5f2b7e.jpeg)
 ![help 2](https://us1.discourse-cdn.com/inductiveautomation/original/3X/c/d/cdbef6e4c18293cbca58097b28e99a9cbaa79f49.jpeg)

---

<div class="post-metadata">

**Author:** ![Ujwal\_Wankhede](https://avatars.discourse-cdn.com/v4/letter/u/4af34b/32.png) [@Ujwal\_Wankhede](https://forum.inductiveautomation.com/u/Ujwal_Wankhede)\
**Post date:** [October 3, 2024, 4:45am UTC](https://forum.inductiveautomation.com/t/hiding-the-heatmap-bar-at-xy-chart/96748/2 "2024-10-03T04:45:48Z")

</div>

Don't use the heatmap option
Add a key holding color value in your dataSources. Assign that key to `Series[x].column.appearance.deriveFieldsFromData.fill.color`

Following is small example for reference.

> **XY Chart Colored Columns**
>
> ```python
> [
> {
> "type": "ia.chart.xy",
> "version": 0,
> "props": {
> "xAxes": [
> {
> "name": "time",
> "label": {
> "enabled": true,
> "text": "Time",
> "color": ""
> },
> "visible": true,
> "tooltip": {
> "enabled": true,
> "text": "",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "inversed": false,
> "render": "date",
> "category": {
> "break": {
> "enabled": false,
> "startCategory": "",
> "endCategory": "",
> "size": 0.05
> }
> },
> "date": {
> "baseInterval": {
> "enabled": false,
> "timeUnit": "hour",
> "count": 1,
> "skipEmptyPeriods": false
> },
> "range": {
> "max": "",
> "min": "",
> "useStrict": false
> },
> "break": {
> "enabled": false,
> "startDate": "",
> "endDate": "",
> "size": 0.05
> },
> "inputFormat": "yyyy-MM-dd kk:mm:ss",
> "format": "M/d"
> },
> "value": {
> "range": {
> "max": "",
> "min": "",
> "useStrict": false
> },
> "logarithmic": false,
> "break": {
> "enabled": false,
> "startValue": 0,
> "endValue": 100,
> "size": 0.05
> },
> "format": "#,###.##"
> },
> "appearance": {
> "opposite": false,
> "inside": false,
> "labels": {
> "color": "",
> "opacity": 1,
> "rotation": 0,
> "verticalCenter": "middle",
> "horizontalCenter": "middle"
> },
> "grid": {
> "color": "",
> "opacity": 1,
> "dashArray": "",
> "minDistance": 60,
> "position": 0.5
> },
> "font": {
> "size": "",
> "weight": 500
> }
> }
> }
> ],
> "yAxes": [
> {
> "name": "process temp",
> "label": {
> "enabled": true,
> "text": "Process Temp",
> "color": ""
> },
> "visible": true,
> "tooltip": {
> "enabled": true,
> "text": "",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "inversed": false,
> "render": "value",
> "category": {
> "break": {
> "enabled": false,
> "startCategory": "",
> "endCategory": "",
> "size": 0.05
> }
> },
> "date": {
> "baseInterval": {
> "enabled": false,
> "timeUnit": "hour",
> "count": 1,
> "skipEmptyPeriods": false
> },
> "range": {
> "max": "",
> "min": "",
> "useStrict": false
> },
> "break": {
> "enabled": false,
> "startDate": "",
> "endDate": "",
> "size": 0.05
> },
> "inputFormat": "yyyy-MM-dd kk:mm:ss",
> "format": "M/d/yyyy HH:mm:ss"
> },
> "value": {
> "range": {
> "max": "",
> "min": "",
> "useStrict": false
> },
> "logarithmic": false,
> "break": {
> "enabled": false,
> "startValue": 0,
> "endValue": 100,
> "size": 0.05
> },
> "format": "#,###.##"
> },
> "appearance": {
> "opposite": false,
> "inside": false,
> "labels": {
> "color": "",
> "opacity": 1,
> "rotation": 0,
> "verticalCenter": "middle",
> "horizontalCenter": "middle"
> },
> "grid": {
> "color": "",
> "opacity": 1,
> "dashArray": "",
> "minDistance": null,
> "position": 0.5
> },
> "font": {
> "size": "",
> "weight": 500
> }
> }
> },
> {
> "name": "output temp",
> "label": {
> "enabled": true,
> "text": "Output Temp",
> "color": ""
> },
> "visible": true,
> "inversed": false,
> "tooltip": {
> "enabled": true,
> "text": "",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "render": "value",
> "category": {
> "break": {
> "enabled": false,
> "startCategory": "",
> "endCategory": "",
> "size": 0.05
> }
> },
> "date": {
> "baseInterval": {
> "enabled": false,
> "timeUnit": "hour",
> "count": 1,
> "skipEmptyPeriods": false
> },
> "range": {
> "max": "",
> "min": "",
> "useStrict": false
> },
> "break": {
> "enabled": false,
> "startDate": "",
> "endDate": "",
> "size": 0.05
> },
> "inputFormat": "yyyy-MM-dd kk:mm:ss",
> "format": "M/d/yyyy"
> },
> "value": {
> "range": {
> "min": "",
> "max": "",
> "useStrict": false
> },
> "logarithmic": false,
> "break": {
> "enabled": false,
> "startValue": 0,
> "endValue": 100,
> "size": 0.05
> },
> "format": "#,###.##"
> },
> "appearance": {
> "opposite": true,
> "inside": false,
> "labels": {
> "color": "",
> "opacity": 1,
> "rotation": 0,
> "verticalCenter": "middle",
> "horizontalCenter": "middle"
> },
> "grid": {
> "color": "",
> "opacity": 1,
> "dashArray": "4,4",
> "minDistance": null,
> "position": 0.5
> },
> "font": {
> "size": "",
> "weight": 500
> }
> }
> }
> ],
> "series": [
> {
> "name": "process temp",
> "label": {
> "text": "Process Temp"
> },
> "visible": true,
> "hiddenInLegend": false,
> "defaultState": {
> "visible": true
> },
> "data": {
> "source": "example",
> "x": "t_stamp",
> "y": "process_temp"
> },
> "xAxis": "time",
> "yAxis": "process temp",
> "zIndex": 0,
> "tooltip": {
> "enabled": true,
> "text": "{name}: [bold]{valueY}[/]",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "render": "column",
> "candlestick": {
> "open": {
> "x": "",
> "y": ""
> },
> "high": {
> "x": "",
> "y": ""
> },
> "low": {
> "x": "",
> "y": ""
> },
> "appearance": {
> "fill": {
> "color": "",
> "opacity": 1
> },
> "stroke": {
> "color": "",
> "opacity": 1,
> "width": 1
> },
> "stacked": false,
> "deriveFieldsFromData": {
> "fill": {
> "color": "",
> "opacity": ""
> },
> "stroke": {
> "color": "",
> "opacity": "",
> "width": ""
> }
> },
> "heatRules": {
> "enabled": false,
> "max": "",
> "min": "",
> "dataField": ""
> }
> }
> },
> "column": {
> "open": {
> "x": "",
> "y": ""
> },
> "appearance": {
> "fill": {
> "color": "",
> "opacity": 1
> },
> "stroke": {
> "color": "",
> "opacity": 1,
> "width": 1
> },
> "stacked": false,
> "width": null,
> "height": null,
> "deriveFieldsFromData": {
> "fill": {
> "color": "color",
> "opacity": ""
> },
> "stroke": {
> "color": "",
> "opacity": "",
> "width": ""
> }
> },
> "heatRules": {
> "enabled": false,
> "max": "",
> "min": "",
> "dataField": ""
> }
> }
> },
> "line": {
> "open": {
> "x": "",
> "y": ""
> },
> "appearance": {
> "connect": true,
> "tensionX": 1,
> "tensionY": 1,
> "minDistance": 0.5,
> "stroke": {
> "width": 3,
> "opacity": 1,
> "color": "",
> "dashArray": ""
> },
> "fill": {
> "opacity": 0,
> "color": ""
> },
> "bullets": [
> {
> "enabled": false,
> "render": "circle",
> "width": 10,
> "height": 10,
> "label": {
> "text": "{value}",
> "position": {
> "dx": 0,
> "dy": 0
> }
> },
> "fill": {
> "color": "",
> "opacity": 1
> },
> "stroke": {
> "color": "",
> "opacity": 1,
> "width": 1
> },
> "rotation": 0,
> "tooltip": {
> "enabled": true,
> "text": "{name}: [bold]{valueY}[/]",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "deriveFieldsFromData": {
> "fill": {
> "color": "",
> "opacity": ""
> },
> "stroke": {
> "color": "",
> "opacity": "",
> "width": ""
> },
> "rotation": ""
> },
> "heatRules": {
> "enabled": false,
> "max": 100,
> "min": 2,
> "dataField": ""
> }
> }
> ]
> }
> },
> "stepLine": {
> "open": {
> "x": "",
> "y": ""
> },
> "appearance": {
> "connect": true,
> "tensionX": 1,
> "tensionY": 1,
> "minDistance": 0.5,
> "stroke": {
> "width": 3,
> "opacity": 1,
> "color": "",
> "dashArray": ""
> },
> "fill": {
> "opacity": 0,
> "color": ""
> },
> "bullets": [
> {
> "enabled": true,
> "render": "circle",
> "width": 10,
> "height": 10,
> "label": {
> "text": "{value}",
> "position": {
> "dx": 0,
> "dy": 0
> }
> },
> "fill": {
> "color": "",
> "opacity": 1
> },
> "stroke": {
> "color": "",
> "opacity": 1,
> "width": 1
> },
> "rotation": 0,
> "tooltip": {
> "enabled": true,
> "text": "{name}: [bold]{valueY}[/]",
> "cornerRadius": 3,
> "pointerLength": 4,
> "background": {
> "color": "",
> "opacity": 1
> }
> },
> "deriveFieldsFromData": {
> "fill": {
> "color": "",
> "opacity": ""
> },
> "stroke": {
> "color": "",
> "opacity": "",
> "width": ""
> },
> "rotation": ""
> },
> "heatRules": {
> "enabled": false,
> "max": 100,
> "min": 2,
> "dataField": ""
> }
> }
> ]
> }
> }
> }
> ],
> "dataSources": {
> "example": [
> {
> "t_stamp": "Tue Aug 07 2018",
> "process_temp": 63,
> "output_temp": 38,
> "color": "red"
> },
> {
> "t_stamp": "Tue Aug 08 2018",
> "process_temp": 59,
> "output_temp": 39,
> "color": "blue"
> },
> {
> "t_stamp": "Tue Aug 09 2018",
> "process_temp": 62,
> "output_temp": 41,
> "color": "yellow"
> }
> ]
> }
> },
> "meta": {
> "name": "XYChart"
> },
> "position": {
> "x": 0.3949,
> "y": 0.0981,
> "width": 0.2458,
> "height": 0.4839
> },
> "custom": {}
> }
> ]
>
> ```

```python

```
