# Ignition Perspective - Custom Progress Bar Layout in Flex Container

**URL:** <https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204>\
**Category:** Ignition\
**Tags:** ignition81, scripting, perspective\
**Created:** [August 27, 2025, 10:16am UTC](https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204 "2025-08-27T10:16:31Z")\
**Posts on this page:** 17\
**Page:** 1

<div class="post-metadata">

**Author:** ![ARIFRAHUMAN\_A](https://avatars.discourse-cdn.com/v4/letter/a/e19b73/32.png) [@ARIFRAHUMAN\_A](https://forum.inductiveautomation.com/u/ARIFRAHUMAN_A)\
**Post date:** [August 27, 2025, 10:16am UTC](https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204/1 "2025-08-27T10:16:31Z")

</div>

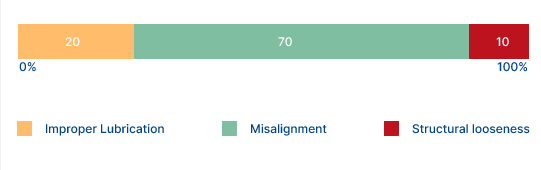

I developed this chart, but I couldn’t find any built-in Perspective component that matches it.

 ![image](https://us1.discourse-cdn.com/inductiveautomation/original/3X/e/c/eca233d49023a9e6ca2ed30789fa0438fc81dc0b.png)

I need to create a progress bar similar to this. I tried using a Flex Container with a Label component inside a Flex Repeater in the main view, but it didn’t render correctly in the client. I adjusted it in the view designer (tab mode), but it still didn’t scale properly with the view size.

I’m stuck on this issue. Has anyone implemented something similar? Please share your ideas or suggestions.

---

<div class="post-metadata">

**Author:** ![Transistor](https://sea1.discourse-cdn.com/inductiveautomation/user_avatar/forum.inductiveautomation.com/transistor/32/3380_2.png) [@Transistor](https://forum.inductiveautomation.com/u/Transistor)\
**Post date:** [August 27, 2025, 10:46am UTC](https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204/2 "2025-08-27T10:46:07Z")

</div>

- Create a flex repeater.

- Add two custom properties, `val1`and `val2` (the first two values on the chart).

- Add three labels, `label_0`, etc.
Bind the text properties to each:
`parent.custom.val1` (property binding)
`parent.custom.val2` (property binding)
`100 - {parent.custom.val1} - {parent.custom.val2}` (expression binding)

- Set grow and shrink for each label to 0.

- Add expression bindings to the `width` property of each label.
`{parent.position.width} * {parent.custom.val1} / 100`
`{parent.position.width} * {parent.custom.val2} / 100`
`{parent.position.width} * (100 - {parent.custom.val1} - {parent.custom.val2}) / 100`

- Style the labels as required. (Using sytle classes is always recommended.)

- You might want to set the label text to`null` or `""` when the width is narrow.

---

<div class="post-metadata">

**Author:** ![ARIFRAHUMAN\_A](https://avatars.discourse-cdn.com/v4/letter/a/e19b73/32.png) [@ARIFRAHUMAN\_A](https://forum.inductiveautomation.com/u/ARIFRAHUMAN_A)\
**Post date:** [August 27, 2025, 3:41pm UTC](https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204/3 "2025-08-27T15:41:41Z")

</div>

No, you can keep three labels, but those labels should not be fixed. They should be dynamic based on my fault modes. For example, I showed three labels, but if I have 7 fault modes, then it should display 7 labels with their values. For instance, if the values are 25, 10, 15, 10, 10, 20, and 10, the progress bar should adjust accordingly based on the fault modes

---

<div class="post-metadata">

**Author:** ![code\_skin](https://avatars.discourse-cdn.com/v4/letter/c/43a26b/32.png) [@code\_skin](https://forum.inductiveautomation.com/u/code_skin)\
**Post date:** [August 27, 2025, 5:27pm UTC](https://forum.inductiveautomation.com/t/ignition-perspective-custom-progress-bar-layout-in-flex-container/110204/4 "2025-08-27T17:27:36Z")

</div>

This looks like a horizontal stacked bar chart. The XY Chart component should be able to meet these requirements.

Man page: [Perspective - XY Chart | Ignition User Manual](https://docs.inductiveautomation.com/docs/8.1/appendix/components/perspective-components/perspective-chart-palette/perspective-xy-chart)

Samples showing different data values:

 ![image](https://us1.discourse-cdn.com/inductiveautomation/original/3X/3/6/3604e22d85e2651f6c66b0efa27c106483a89733.png)

 ![image](https://us1.discourse-cdn.com/inductiveautomation/original/3X/b/f/bf436fcf595f7f10daa622505d7bd681a6793a3b.png)

JSON attached.
